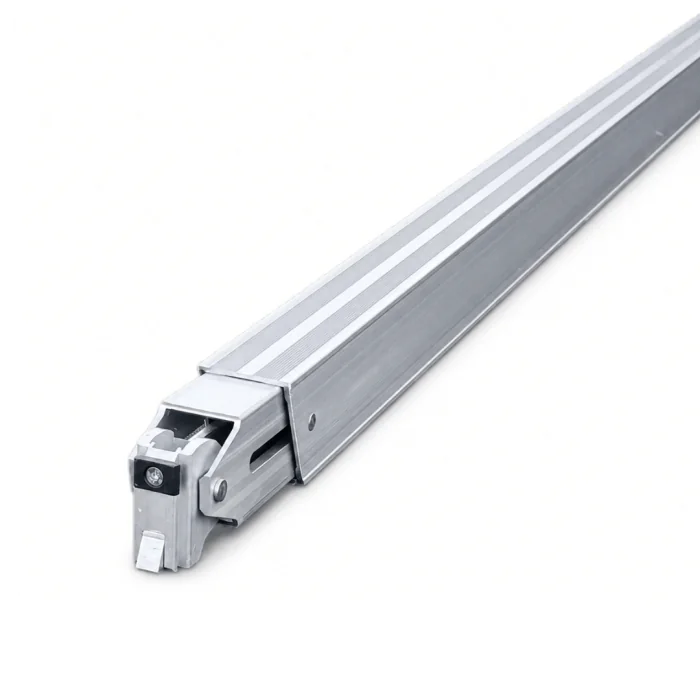

  • Lasiprofi Gelenkladebalken für Schmitz, Einsatzbereich: 2412 – 2720 mm

Art.-No.: 7221-1002

Lasiprofi Gelenkladebalken für Schmitz, Einsatzbereich: 2412 – 2720 mm

Minimum Qty: 1 Piece

  • As low as 10

    €80.90 Excl. Tax

  • As low as 20

    €76.70 Excl. Tax

Shipping costs: €6.90 Excl. Tax (plus oversized item surcharge)²

Free shipping from €150.00 (net) , €178.50 (gross)*

Delivery time: approx. 1-3 working days

Der Lasiprofi-Gelenkladebalken wird vornehmlich zur Doppelstockbeladung bzw. zur Einrichtung einer zweiten Ladeebene im Trailer verwendet. Er kann aber auch zur rückwärtigen, formschlüssigen Sicherung von Ladung auf Lkw-Ladeflächen eingesetzt werden. Gefertigt aus Aluminium, ist der Gelenkladebalken beidseitig ausziehbar und kann mithilfe der Gelenk-Endstücke in die bereits vorhandene Aufnahme einer senkrecht verbauten Führungsschiene eingesetzt werden. Dieses Modell ist passend für die Ladungssysteme von SCHMITZ (Kofferaufbauten).

More Information

Ability to supply

approx. 1-3 working days

Color

silver

Loading capacity (vertical) in daN

1000

Blocking force (BC) in daN

1000

Installation type

plugged in

Mounting type

Wall

Packaging unit

pcs.

Material

Aluminium

Total length in mm

2410

width in mm

66

Vorteile des Produkts
  • for horizontal use and double-deck loading
  • for tarpaulin vehicles and box vehicles
  • Depending on the selection, suitable for the systems of Krone and Schmitz
  • Advantage: maximum parking height position
  • Can be shortened to a total length of 800 mm

Description
A special product for double-deck loading is the Lasiprofi articulated loading bar . Its primary use is for double-deck loading in box bodies or swap bodies. It can also be used as a loading, locking, or clamping bar for rearward, positive-locking load securing.

For use, a suitable guide rail in the swap body or box body is required. The major difference to a standard loading beam is the articulated end pieces. These allow for travel on both sides at different heights.

The locking force is up to 3,000 daN when used for positive-locking load securing of the Lasiprofi articulated loading beam. It is also 1,000 daN when used in a second loading level (double-deck loading).

This Lasiprofi articulated loading beam can be used in a lifting range of 2,437 to 2,737 mm ( SCHMITZ ) and is compatible with the loading system from SCHMITZ for box bodies. Thanks to the articulated end pieces on both sides, the Lasiprofi articulated loading beam can be moved to its maximum parking height position in just a few steps.

Made of aluminium, the Lasiprofi articulated loading beam is lightweight, yet extremely durable and resilient.

Important user instructions:

Always use anti-slip material, such as a mat, when double-stacking. Securing the load on the loading beam to prevent it from shifting is crucial. Always observe the maximum load capacity (LC) of our Lasiprofi articulated loading beam. This is typically 1,000 daN, depending on the application. You can find all the relevant information on the sticker label attached to the loading beam.
